Mercedes ABS Module Repair: 6 Symptoms, 4 Causes, and 3 Fix Options Explained

Mercedes ABS module repair is the process of diagnosing, rebuilding, or replacing the ESP/ABS control unit (N30/4) that governs the anti-lock braking system, electronic stability program, and power steering assist. A failed unit triggers multiple warning lights and disables critical safety systems.

What Is the Mercedes ABS Module?

Manufacturer support pages provide related owner information in Ram owner support.

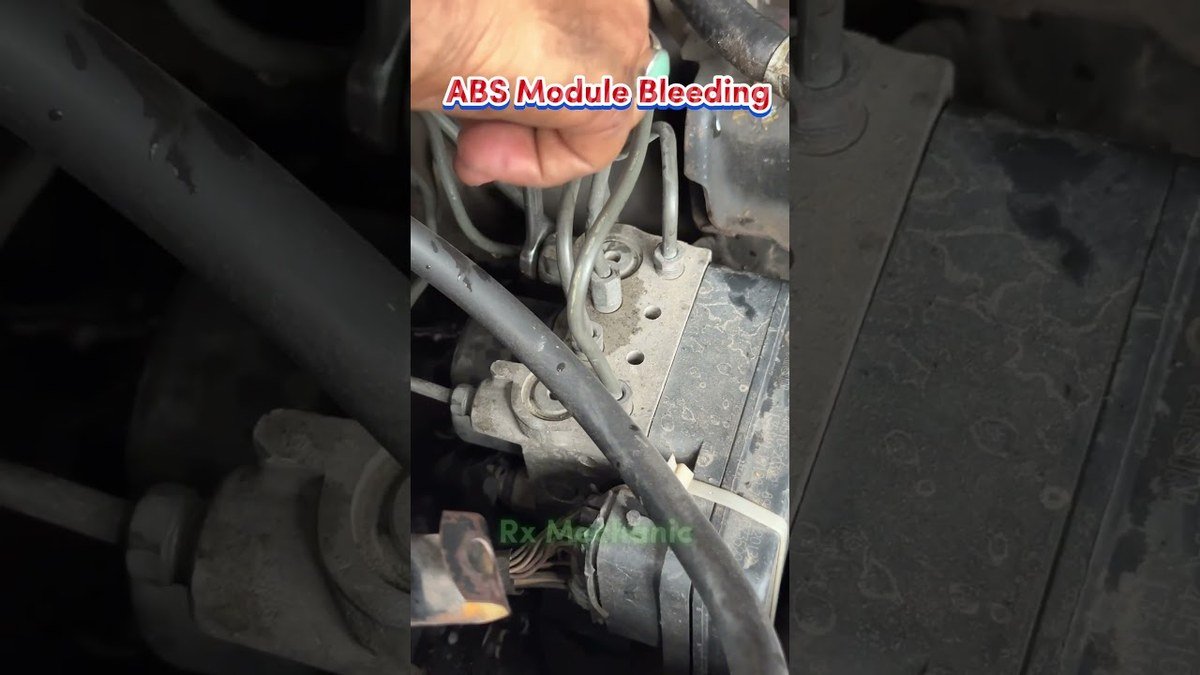

The Mercedes ABS module, designated N30/4, is the Electronic Control Unit that processes wheel speed sensor data and controls hydraulic brake pressure at each wheel to prevent lockup. On Mercedes-Benz vehicles, this unit integrates 4 systems: ABS, ESP, Electronic Brake Distribution (EBD), and electrohydraulic power steering assistance.

The module contains 3 main components:

Bleeding Brakes with ABS: 2 Methods, 9 Steps, and 4 Mistakes to Avoid

Harley ABS Brake Bleeding Scan Tool: 4 Compatible Tools, 2 Methods, and Year-by-Year Compatibility Guide

• The ABS pump motor, which maintains hydraulic pressure
• The hydraulic unit, which holds the solenoid valves controlling brake pressure
• The printed circuit board (PCB), which processes all sensor inputs and system commands

Which Mercedes Models Have the Most ABS Module Failures?

Mercedes-Benz vehicles from 2006 to 2019 are most commonly affected. Models include:

• C-Class W204 (2006-2018)
• E-Class W212 (2010-2013)
• S-Class W221 (2006-2013)
• CLS-Class W218 (2010-2014)

The W204 C-Class is the most widely reported model for N30/4 ABS module failure, with fault codes 5001, 5944, and 5945 appearing after driving above approximately 20 km/h.

What Are the 6 Symptoms of a Failing Mercedes ABS Module?

The 6 main symptoms of a failing Mercedes ABS module are warning lights, heavy power steering, loss of ABS function, ESP faults, run-flat indicator failure, and loss of communication with the scan tool.

In detail:

1. ABS warning light illuminated on the instrument cluster
2. ESP warning light and the message "EBD, ABS, ESP inoperative See Owner's Manual"
3. "Power steering malfunction" message, causing the steering to become stiff and heavy
4. "Run Flat Indicator inoperative" message on the dashboard
5. No communication with the ABS module when connected to a diagnostic scanner
6. Speedometer not reading correctly, caused by lost wheel speed sensor data

Symptoms typically appear after 10 to 15 seconds of driving, or consistently above approximately 12 mph (20 km/h). Restarting the vehicle may temporarily clear the fault, but it returns when the module reaches operating temperature.

What Causes Mercedes ABS Module Failure?

The 4 most common causes of Mercedes ABS module failure are cracked solder joints, contaminated brake fluid, moisture damage, and internal component wear.

1. Cracked solder joints are the most frequent internal cause. Thermal cycling from engine heat expands and contracts PCB connections over time, breaking the solder bond at critical relay or driver components.
2. Contaminated brake fluid corrodes the metal and rubber parts inside the hydraulic modulator. Moisture absorbed into the brake fluid accelerates corrosion of internal valve seats and seals.
3. Moisture and water ingress reach the PCB directly through damaged wiring harnesses or housing seals, causing short circuits or communication driver failure.
4. Wear and tear on the pump motor increases friction between moving components, eventually causing the motor brushes or bearings to fail.

What Fault Codes Indicate a Mercedes ABS Module Problem?

Fault codes 5001, 5944, and 5945 are the primary indicators of an internal N30/4 ABS/ESP module fault on Mercedes-Benz vehicles.

The table below lists the 7 most common Mercedes ABS fault codes, their descriptions, and the systems affected.

Note: If pump-related codes such as 5955, 5962, or 5964 appear alongside the above codes, both the ESP module and the hydraulic pump unit require repair.

What Are the 3 Options to Fix a Mercedes ABS Module?

There are 3 options to fix a Mercedes ABS module: component repair, full rebuild, and new OEM replacement.

1. Component repair targets and replaces only the specific failed components, such as a burned relay or cracked solder joint. It is the fastest and lowest-cost option.
2. Full rebuild completely reworks the internal circuit board. All components near tolerance limits are replaced by default, not just the confirmed failed ones. The solenoid valves undergo internal cleaning cycles. Initial and final pressure tests verify hydraulic performance. This approach addresses the root cause and reduces the chance of repeat failure.
3. New OEM replacement provides a factory module. This is the most expensive option and requires SCN (Serial/Sequence Coded Number) coding at a Mercedes-Benz dealer before the module operates.

Repaired and rebuilt modules are returned as plug-and-play units. All original calibration and coding data are retained during the repair process.

Does a Repaired Mercedes ABS Module Need SCN Coding?

A repaired or rebuilt Mercedes ABS module does not require SCN coding, because the original module's data and configuration are retained throughout the repair process. A new replacement module is blank from the factory and requires dealer-level SCN coding to function, adding cost beyond the part price.

How Much Does Mercedes ABS Module Repair Cost?

Mercedes ABS module repair costs between $100 and $300 for a component repair service. A new OEM module costs between $600 and $2,200, excluding SCN coding fees.

The table below compares the 3 repair options by cost, coding requirement, and turnaround time.

Repairing or rebuilding the existing module saves up to 80% compared to purchasing a new replacement. Rebuild services typically include a 12-month warranty and unlimited mileage coverage.

Diagnostic fees of $40 to $200 apply at repair shops before any work begins, depending on the service provider.

How Do You Send a Mercedes ABS Module for Repair?

Remove the Mercedes ABS module, package it securely in a padded box, and ship it to a specialist repair service using a tracked courier.

The removal and send-in process:

1. Scan the vehicle with a compatible diagnostic tool and record all stored fault codes.
2. Confirm fault codes 5001, 5944, 5945, or related N30/4 codes are present.
3. Disconnect the battery before removing the module.
4. Remove the ABS/ESP module from its mounting location, typically in the engine bay.
5. Place the module in a sturdy, padded box with sufficient packaging material.
6. Include the printed confirmation email and a list of fault codes inside the package.
7. Ship via tracked courier to the repair facility.
8. Repair turnaround is 2 to 3 working days from receipt.

Reinstallation is plug-and-play. No additional programming, SCN coding, or adaptation procedures are required after a repair or rebuild service.
