Steering Rack: Definition, Working Principle, 3 Types, 5 Failure Symptoms, and Replacement Cost
A steering rack is the gear assembly that turns the front wheels in modern passenger cars. This article covers the definition, working principle, 3 types, 5 failure symptoms, 2026 replacement costs, and fuel economy effects of on-demand electric steering.
What Is a Steering Rack?
A steering rack is a gear set that converts the rotational motion of the steering wheel into the linear motion that turns the front wheels. The same part is also called a rack and pinion assembly.
According to eBay Motors, the gear set also provides a gear reduction that decreases the effort needed to turn the wheels. According to Kings Nissan and eBay Motors, the assembly has 4 main parts: the rack, the pinion gear, the steering shaft, and the tie rods.
When Did Cars Start Using Steering Racks?
Cars started using steering racks in the 1930s, when BMW became one of the first manufacturers to adopt the system.
According to Wikipedia, US manufacturers began using steering racks with the 1974 Ford Pinto.
How Does a Steering Rack Differ From a Recirculating Ball Steering Mechanism?
A steering rack pairs a pinion with a toothed rack, while a recirculating ball mechanism provides a greater mechanical advantage for larger, heavier vehicles.
According to Wikipedia, near-universal power steering adoption removed the weight limitation of steering racks, which increased their use on newer cars.

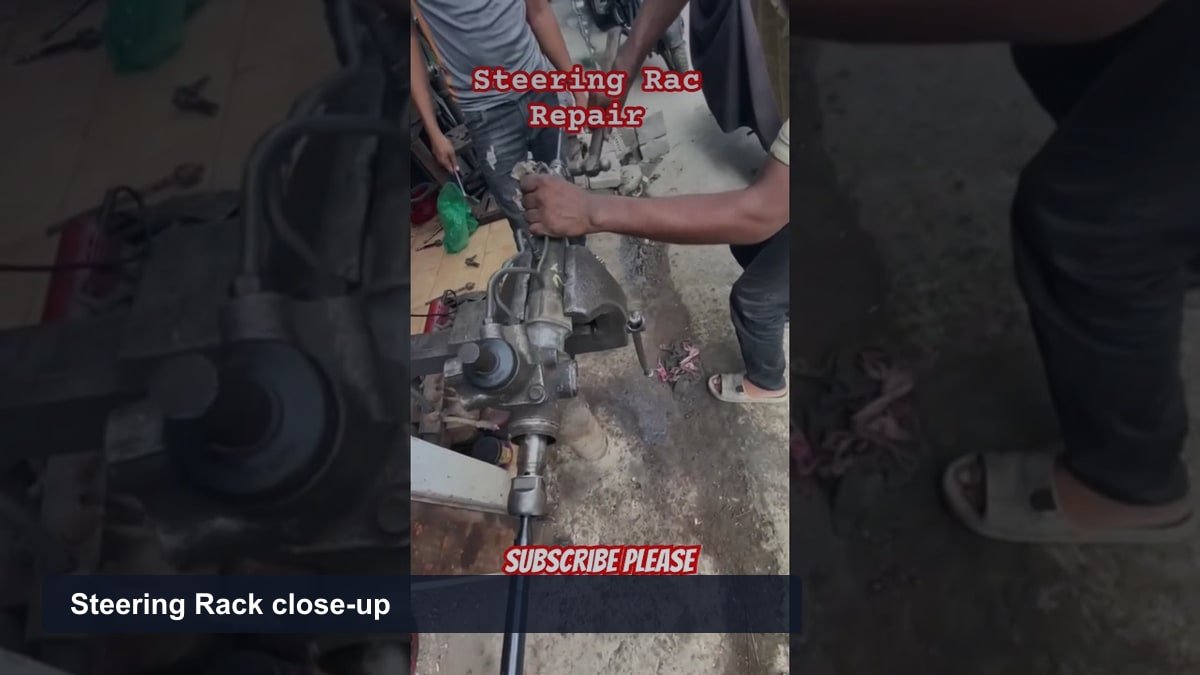

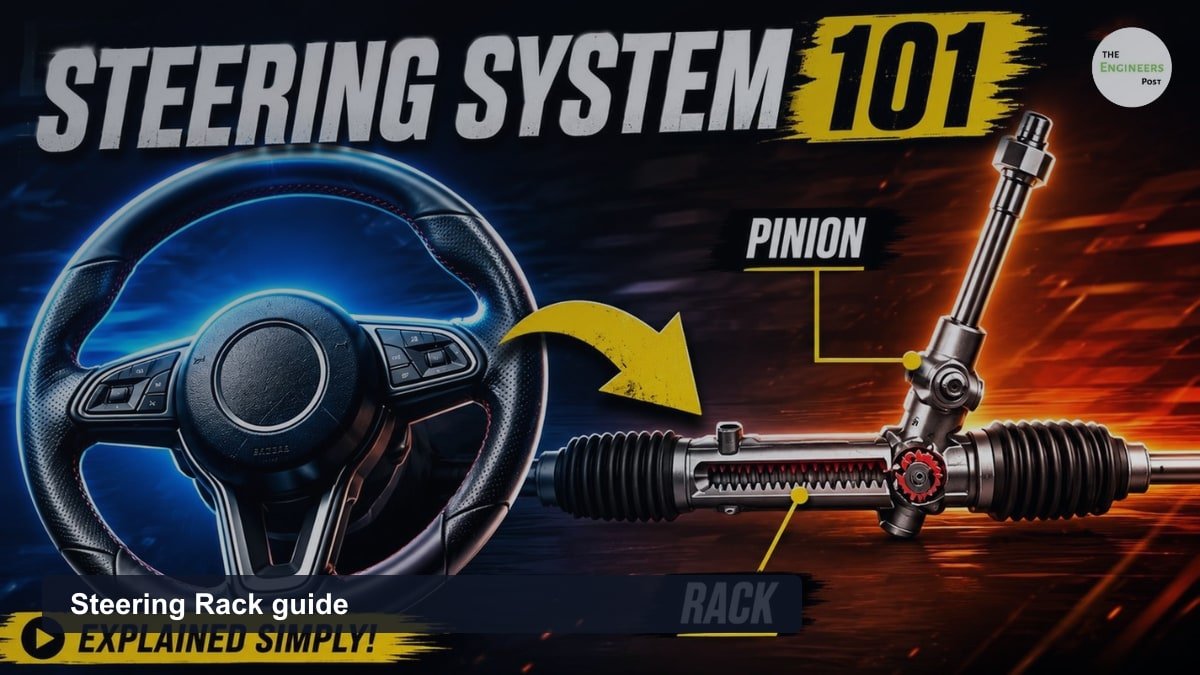

How Does a Steering Rack Work?
A steering rack works when the steering shaft turns a pinion gear that moves a toothed rack to the left or right. According to Detroit Axle and eBay Motors, the process has 4 steps:
- The steering shaft rotates the pinion gear.
- The pinion gear moves the rack left or right.
- The rack pushes the inner and outer tie rods.
- The tie rods move the steering arm on the spindle, which turns the wheel.
What Is Steering Ratio in a Steering Rack?
Steering ratio is the gear reduction that sets how many steering wheel rotations move the wheels from lock to lock.
For related reading, see Steering Wheel Knob: Definition, 6 Types, and 4 Safety Risks. The same maintenance context also connects with Steering Wheel Knob.
According to eBay Motors, manufacturers build racks with different steering ratios to shorten or lengthen the number of rotations from lock to lock. According to Moog, variable ratio racks use a different tooth pitch at the center than at the ends.
According to ScienceDirect Topics, variable ratio racks improve the operating characteristics of both manual and power-assisted steering. According to Wikipedia, Arthur Ernest Bishop invented the variable rack in the 1970s to improve vehicle response and comfort at high speeds.
What Are the 3 Types of Steering Racks?
The 3 types of steering racks are manual, hydraulic power-assisted, and electric power-assisted. The table compares the 3 types by assist source and operating principle, based on Kings Nissan and Moog.
| Steering rack type | Assist source | Operating principle |
|---|---|---|
| Manual | Driver input only | The steering wheel turns the pinion, and the pinion moves the rack sideways. |
| Hydraulic power-assisted | Hydraulic pump, typically engine-driven | Fluid pressure on one side of a piston inside the rack moves the piston and assists the rack. |
| Electric power-assisted | Electric motor | The motor attaches to the steering column or to the rack itself. |
What Is the Difference Between End Take-Off and Center Take-Off Racks?
End take-off racks attach the tie rods to the ends of the rack through inner axial rods, according to Moog. Center take-off racks bolt the tie rods to the center of the rack.
What Are the 5 Symptoms of a Bad Steering Rack?
The 5 main symptoms of a bad steering rack are loose steering, tight steering, fluid leaks, steering noises, and vehicle drift.
- Loose steering: The wheel has excess play, and the vehicle responds late to turns.
- Tight steering: The wheel is harder to turn because of heat build-up or hydraulic pressure loss.
- Fluid leaks: Red or reddish-brown power steering fluid appears under the front of the vehicle.
- Steering noises: Clunking, squeaking, or grinding sounds occur when turning.
- Vehicle drift: The vehicle fails to hold a straight line and requires constant steering correction.
Great Water 360 Autocare and YourMechanic list these symptoms. YourMechanic and PartCatalog add a burning oil smell and uneven tire wear.
How Do Steering Rack Noises Differ?
Grinding indicates a failing steering rack, while screeching or squealing indicates low power steering fluid or a faulty pump, according to Hogan and Sons.
What Causes a Steering Rack to Fail?
The 3 main causes of steering rack failure are poor lubrication, contaminated fluid, and driving strain.
- Poor lubrication: According to YourMechanic, lack of proper lubrication and servicing causes steering rack failure.
- Contaminated fluid: According to AutoNation Mobile Service, debris in power steering fluid damages the rack seals and leads to fluid leaks.
- Driving strain: According to AutoNation Mobile Service, frequent overspeeding and hard braking strain the steering rack.
Can a Vehicle Be Driven With a Bad Steering Rack?
No, a vehicle with a failing steering rack is unsafe to drive, because steering becomes less predictable and responsive, according to PartCatalog.
According to AutoNation Mobile Service, a faulty rack can also damage other steering and suspension components and raise repair costs.
According to CarParts.com, electric power steering systems can suffer a total loss of steering assist.
How Much Does Steering Rack Replacement Cost?
Steering rack replacement costs $1,000 to $2,800 in the United States in 2026, including parts, labor, and alignment, according to JCMS Tech.
Other 2026 cost guides report $900 to $2,500 (Vehicle Runs) and $710 to $3,000 or more (AutoNation Mobile Service).
For a reliable reference point, see NHTSA recalls and vehicle safety.
The table lists the 3 cost components of a steering rack replacement in US dollars, according to AutoNation Mobile Service.
| Cost component | Typical range (USD) | Notes |
|---|---|---|
| Parts | $200 to $1,200 | Cost varies by vehicle make, model, and part type. |
| Labor | $400 to $1,800 | Labor takes 5 to 8 hours of work. |
| Wheel alignment | $50 to $200 | Alignment is required after the service. |
According to Vehicle Runs, a remanufactured rack costs $250 to $800, and a new OEM rack costs $700 to $1,500 or more.
What Affects Steering Rack Replacement Cost?
The 4 main factors that affect steering rack replacement cost are vehicle type, rack type, shop type, and calibration requirements.
- Vehicle type: Luxury and electric vehicles cost up to $4,800 for replacement.
- Rack type: Electric racks cost two to three times more than the hydraulic units they replaced.
- Shop type: Independent shops charge $900 to $1,800, and dealerships charge $1,400 to $2,500 or more.
- Calibration requirements: The rack links to lane-keep assist, auto-park, and adaptive cruise control.
Empire Auto Protect and Vehicle Runs report these 4 factors. Empire Auto Protect adds that many vehicles require a steering-angle sensor reset and a forward-camera calibration after replacement.
According to AutoNation Mobile Service, luxury and performance models such as the Mercedes-Benz E-Class use more advanced racks. These racks can add $800 to $1,500 or more to the cost of the part alone.
How Much Does Electric Steering Rack Replacement Cost?
Electric steering rack replacement costs $1,200 to $2,000 on typical vehicles and $1,800 to $2,500 on luxury or electric vehicles with an assist motor, according to AutoNation Mobile Service.
Do On-Demand Electric Steering Systems Improve Fuel Economy?
Yes, an on-demand electric powered hydraulic steering system improved fuel economy by 3 to 6% in loaded heavy-duty vehicle trials, according to a 2026 SAE International paper.
Engine-driven hydraulic steering systems have continuous energy consumption, while the on-demand system draws energy only when steering assist is required.
The paper identifies full electric power steering as a path to additional efficiency gains and integration with advanced driver assistance systems (ADAS).
What Are Common Questions About Steering Racks?
What does a steering rack do?
A steering rack converts steering wheel rotation into the left and right motion that turns the front wheels, according to Detroit Axle.
Is a steering rack the same as a rack and pinion?
Yes, in many passenger vehicles both terms refer to the same steering assembly, according to JCMS Tech.
How long does steering rack replacement take?
Replacement takes 3 to 8 hours, according to Vehicle Runs, and 5 to 8 hours, according to AutoNation Mobile Service.
Does steering rack replacement require a wheel alignment?
Yes, a wheel alignment is required after the replacement, according to AutoNation Mobile Service.
Can a remanufactured steering rack replace a new one?
Yes, mechanics and auto-parts stores sell remanufactured racks, which cost 40 to 60% less than new OEM units, according to Empire Auto Protect.
What Are the Key Facts About a Steering Rack?
A steering rack is a gear set that converts steering wheel rotation into the linear motion that turns the front wheels. The key facts are listed below.
- Types: manual, hydraulic power-assisted, and electric power-assisted.
- Symptoms: loose steering, tight steering, fluid leaks, steering noises, and vehicle drift.
- Replacement cost: $1,000 to $2,800 on most vehicles in 2026.
- Fuel economy: a 3 to 6% improvement from an on-demand electric powered hydraulic steering system in heavy-duty vehicle trials.
