How to Repair an ABS Control Module: 5 Methods and Step-by-Step Guide

An ABS control module can be repaired using 5 methods: circuit board cleaning, solder joint repair, wiring harness repair, module reprogramming, and full module replacement. The correct method depends on the type and severity of the fault identified through diagnostic scanning.

The ABS control module, also called the EBCM (Electronic Brake Control Module), processes data from wheel speed sensors and controls brake pressure during ABS events. A fault in this module disables the ABS system and activates the ABS warning light.

NHTSA explains related safety context in NHTSA vehicle safety information.

What Is an ABS Control Module?

The ABS control module is an electronic control unit that manages the Anti-lock Braking System. It receives input from 4 wheel speed sensors and signals the modulator valves to release and reapply brake pressure up to 20 times per second during a hard stop.

Will ABS Light Fail Inspection? 3 Key Factors That Determine the Result

Cheapest ABS Bleed Scan Tools: 5 Affordable Options Under $150

The module contains 3 primary components:

• A printed circuit board (PCB)
• A microprocessor
• A relay and power supply circuit

What Are the Symptoms of a Failing ABS Control Module?

There are 6 main symptoms of a failing ABS control module:

1. Illuminated ABS warning light on the dashboard
2. Illuminated traction control or stability control warning light
3. ABS activating during normal, non-emergency braking
4. Brakes locking under normal braking conditions
5. An unresponsive or spongy brake pedal
6. Longer stopping distances on wet or dry surfaces

According to a 2020 study in the SAE International Journal of Passenger Cars, ABS control module failures account for 18% of all reported ABS system faults in vehicles over 8 years old.

How Do You Diagnose an ABS Control Module Fault?

Diagnosing an ABS control module fault requires 5 steps:

1. Connect an OBD-II scanner to the diagnostic port (located under the dashboard)
2. Select the ABS or brake system module in the scanner menu
3. Retrieve all stored diagnostic trouble codes (DTCs)
4. Cross-reference codes with the manufacturer's fault code list
5. Perform a live data test to monitor wheel speed sensor input and module output

Common ABS control module fault codes include:

Code | Fault Description C0110 | ABS pump motor circuit fault C0265 | ABS relay circuit open U0121 | Lost communication with ABS module C0800 | Control module power circuit fault C1214 | Solenoid valve relay contact circuit open

A U0121 code specifically indicates the main vehicle ECU cannot communicate with the ABS module. This confirms a module-level fault rather than a sensor or wiring issue.

What Are the 5 Methods to Repair an ABS Control Module?

There are 5 main methods to repair an ABS control module.

Method 1: How Do You Clean the ABS Control Module Circuit Board?

Cleaning the circuit board removes corrosion and moisture that cause intermittent ABS faults. This is the most accessible repair method for home mechanics.

This process requires 6 steps:

1. Disconnect the vehicle battery (negative terminal first)

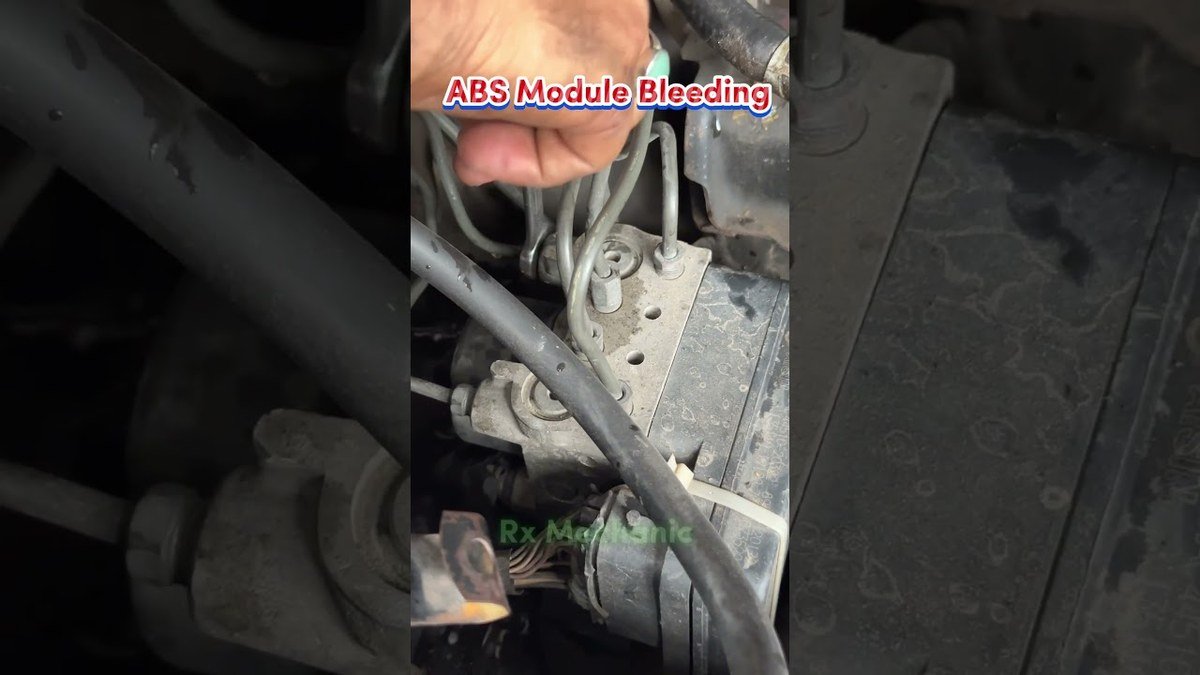

2. Locate and remove the ABS control module (typically mounted on or near the hydraulic control unit)
3. Remove the module housing using a T10 or T20 Torx screwdriver
4. Inspect the PCB for corrosion, burnt components, or cracked solder joints
5. Clean the board using isopropyl alcohol at a minimum 90% concentration and a soft brush
6. Allow the board to dry fully for a minimum of 30 minutes before reassembly

Corrosion on ABS module circuit boards is most common in vehicles operating in high-moisture or road-salt environments. Vehicles in these regions include those driven in northern U.S. states such as Michigan, Ohio, and New York.

Method 2: How Do You Resolder ABS Control Module Circuit Board Connections?

Resoldering cracked or failed solder joints restores electrical continuity in the module. Cracked solder joints are a documented failure point in ABS modules from manufacturers such as BMW, Mercedes-Benz, and Ford.

This process requires 4 steps:

1. Identify cracked or dull solder joints under 10x magnification using a loupe or digital microscope
2. Apply flux to the affected joint
3. Heat the joint using a soldering iron at 350 to 370 degrees Celsius
4. Apply fresh 60/40 or lead-free solder and allow the joint to cool undisturbed

A 2019 report from iFixit documented that cracked solder joints on the pump motor relay accounted for over 40% of ABS module failures in BMW E46 and E39 models.

Method 3: How Do You Replace the ABS Control Module?

Replacing the ABS control module installs a new or remanufactured unit in place of the failed module. Replacement is required when internal components are beyond repair.

This process requires 5 steps:

1. Disconnect the battery negative terminal
2. Unplug the wiring harness connector from the ABS module
3. Remove the 2 to 4 mounting bolts securing the module to the hydraulic unit
4. Install the replacement module and torque mounting bolts to manufacturer specification
5. Reconnect the wiring harness and battery, then perform a module initialization with a scan tool

Replacement ABS control modules are available in 3 forms:

• New OEM modules from manufacturers such as Bosch, Delphi, and Continental
• Remanufactured modules rebuilt to OEM specifications
• Used modules sourced from salvage vehicles of the same make, model, and year

Method 4: How Do You Reprogram an ABS Control Module?

Reprogramming the ABS control module reloads the software calibration required for the module to communicate with the vehicle's ECU. Reprogramming is required after installing a used or remanufactured module.

Reprogramming requires 3 tools:

• A manufacturer-specific scan tool such as Tech2 for GM vehicles or STAR Diagnostics for Mercedes-Benz
• Access to the vehicle manufacturer's programming portal
• A stable 12-volt power supply connected to the battery during programming

Many dealerships and independent shops use J2534 PassThru devices to reprogram modules using manufacturer software. Reprogramming costs between $75 and $200 at a dealership or equipped independent shop.

Method 5: How Do You Repair ABS Control Module Wiring?

Repairing the wiring harness restores signal and power connections to the ABS control module. Wiring faults are a common cause of module communication errors, particularly codes such as U0121 and C0800.

This process requires 4 steps:

1. Inspect the wiring harness from the module connector to the chassis ground points
2. Use a digital multimeter to test for continuity, short circuits, and voltage drops
3. Repair damaged sections using OEM-grade wire and heat-shrink solder connectors
4. Apply dielectric grease to all connectors before reassembly to prevent future corrosion

Voltage drop at the module power supply circuit must not exceed 0.5 volts between the battery and module connector. A drop above this threshold indicates resistance in the wiring that reduces module performance.

How Much Does It Cost to Repair an ABS Control Module?

Repair costs vary depending on the method used. There are 5 main cost ranges:

Repair Method | Estimated Cost Circuit board cleaning | $10 to $30 (DIY materials) Resoldering circuit board | $50 to $150 (professional service) Wiring harness repair | $100 to $400 Module reprogramming | $75 to $200 Full module replacement | $320 to $1,000 (parts only)

Professional ABS module rebuild services offered by companies such as Module Experts and ABS Module Repair charge between $100 and $300 for a full rebuild including return shipping.

Summary

An ABS control module can be repaired using 5 methods: circuit board cleaning, solder joint repair, wiring harness repair, module reprogramming, and full module replacement. Diagnosis using an OBD-II scanner is the required first step to identify the specific fault. Cleaning and resoldering are the most cost-effective repair methods. Full replacement is necessary when internal components are beyond repair. Repair costs range from $10 for DIY cleaning to $1,000 for a full OEM module replacement.
